12 Inch /30cm - 2x4Ohm - 400 RMS / 1000 W
2" Inch BASV - 92dB @ 2.8V - 160oz Motor
MD=132mm ID=278mm OD=318mm W=4,8kg
Dual Composite red linear Spider and Cone
Red stiched HDR Surrounds - 3D Dustcap

VC Roll Range Height 28 mm
XMAX linear 10 / 20 mm
DC Resistance 2x 3.2Ohm
BL @ Parallel 7.71
Suspension Compliance Cms 0.19
Mechanical Q Factor Qms 5,88
Electrical Q Factor Qes 0.61
Total Q Factor Qts 0.61
Moving Mass Mms 129 g
Eq.Cas Air Load( liters) VAS Liter 73.06
Resonant Frequency Fs Hz 32
Effective Piston Area SD 510.7

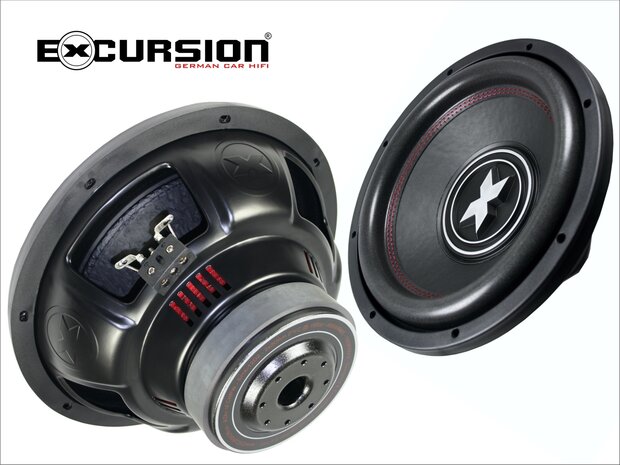

New SHX.v2 Excursion Subwoofer Bunnies feature multilayered pressed paper cone with glasfiber reinformcement for natural bass reproduction and now step up with our overall innovative EXCURSION T steel Basket in their latest Version 2. Improved High Roll Foam surround promise continous unlimited movements. Furthermore upgraded with our upper series military Standard 8GA Screw Terminal we improve comfort and quality of installation. Linear precise spider design with reliable wooven tinseal are standards we are known for. Offered in Dual 4Ohm as well professional Dual 2 Ohm Impdedances from .v2  the final choices from 8/4/2/1Ohm hook up Impedance per Subwoofer is up to your system demands. High temperature resistant and top vented 1.5 Inch , 2 Inch or 2.5 Inch BASV on aluminium voice coil formers are proven morel than decade as unbreakable. Extra bumped, pole and now even gap vented backpate support the internal motor cooling and circle air flow. Individual designed Motor structures per size goes up to 230Oz for 15 Inch and guarantee no compromize in performance. Stylish finished with our 3D Excursion Dustcap our SHX.v2 Series continue the legendary Value for preferable very powerful ported enclosures and should be seen as an ENTRY line with a good portion on humor, at least this is what our competitior will need.


Since 2014 EXCURSION offer a praxis born range of Loudspeaker, Subwoofer and Amplifiers based on 30years of experience and engineering. Design, Innovation and Improvements are sourced from all those Challenges of the Car Audio Competition Associations all over the world. This selection of leading and winning high technology route direct into our product lines in order to offer a wide range of consumers Know How and Value which they could usually not access.  With german leadership in the global production our authorizied EXCURSION factory partners leave no doubt to meet standards we as german brand are expected for.

Next to an unbeatable Price Performance the praxis form follow function philosophy mirror the prior target motivation of EXCURSION. Everything of past and presence is taken into doubt first, in order to get rethought with all its Details again for a further improve in result. Those results like compact mini sized high technology SMD or CHIP built car audio amplifiers who can meet military standards in caftmansship or new age Plug & Play concepts going through all steps in the line of amplifier till speaker, keeping always flexbile ENERGETIC upgrade improvements or optional upgrade with professional multichannel DSP or BlueTooth connection for a lossless High End streaming via your personal Smart Phone.

With selection of the highest technology global factory partners we at EXCURSION follow and guarantee a tradition of value and exellence for our products. This without mark ups to our car audio customer for horrible marketing and lobby pampering expenses or any half naked women in order to attract more than the value or performance those products mostly can have. We believe or challenge start after you have closed your eyes, after installation & purchase and be asured we love to get compared .... and even more if you comment and let us know about your judging.

EXCURSION …is all you need
